Overview

3 to 4% of the light impinging on the 10K-W, 15K-W, 20K-W and 30K-W is backscattered in a diffuse manner. This can cause heating of surrounding surfaces. Scatter Shields are available to greatly reduce this affect. When installed on the front flange of the sensors, they will reduce the backscatter by about 70%.

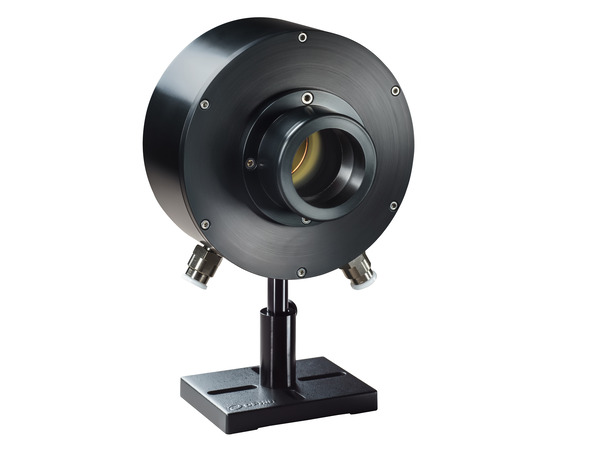

Scatter shield reduces backscattered power
Protective covers protect sensors from debris
black anodized aluminum cover with cross pattern for alignment

See All Features

Products

Show entries

Search:

Compare	Model		Availability	Price	Brand
7Z08295 10K-W/15K-W Scatter Shield Assy Scatter Shield, 10K-W / 15K-W Sensors $505.00 Show	7Z08295 10K-W/15K-W Scatter Shield Assy Scatter Shield, 10K-W / 15K-W Sensors	3.0	Show	$505.00	Ophir
7Z08355 20K-W Scatter Shield Assy Scatter Shield, 20K-W Sensors $491.00 Show	7Z08355 20K-W Scatter Shield Assy Scatter Shield, 20K-W Sensors	4.0	Show	$491.00	Ophir
7Z08293 30K-W Scatter Shield Assy Scatter Shield, 30K-W Sensors $542.00 Show	7Z08293 30K-W Scatter Shield Assy Scatter Shield, 30K-W Sensors	5.0	Show	$542.00	Ophir
7Z08345 10K-W/15K-W Scatter Shield Protective Cover Protective Cover, 10K-W / 15K-W Sensor with Scatter Shield $176.00 Show	7Z08345 10K-W/15K-W Scatter Shield Protective Cover Protective Cover, 10K-W / 15K-W Sensor with Scatter Shield	6.0	Show	$176.00	Ophir
7Z08346 30K-W Scatter Shield Protective Cover Protective Cover, 30K-W Sensor with Scatter Shield $184.00 Contact Us	7Z08346 30K-W Scatter Shield Protective Cover Protective Cover, 30K-W Sensor with Scatter Shield	8.0	Contact Us	$184.00	Ophir
1G01332 10K-W Protective Cover Protective Cover, 15K-W, 10K-W, 5000W, L1500W, 1000W Sensors $45.00 Show	1G01332 10K-W Protective Cover Protective Cover, 15K-W, 10K-W, 5000W, L1500W, 1000W Sensors	9.0	Show	$45.00	Ophir
1G02813 20K-W Protective Cover Protective Cover, 20K-W Sensors Show	1G02813 20K-W Protective Cover Protective Cover, 20K-W Sensors	10.0	Show
1G02406 30K-W Protective Cover Protective Cover, 30K-W Sensors $151.00 Show	1G02406 30K-W Protective Cover Protective Cover, 30K-W Sensors	11.0	Show	$151.00	Ophir

Showing 1 to 8 of 8 entries

Previous1Next

Features

Scatter Shield for Reducing Backscattered Power

3 to 4% of the light impinging on the 10K-W, 15K-W, 16K-W and 30K-W is backscattered in a diffuse manner. This can cause heating of surrounding surfaces. Scatter Shields are available to greatly reduce this affect. When installed on the front flange of the sensors, they will reduce the backscatter by about 70%. The scatter shield comes with a protective cover with target pattern for alignment that also can be purchased separately. Since some of the light is reabsorbed, the power reading is 1-1.5% higher than without the shield, so an additional laser setting is given for use when the shield is mounted to adjust for this difference.

Protective Cover with Target Pattern

All the protective covers are made of black anodized aluminum, and have a cross pattern for alignment. Two versions are offered for sensors with scatter shield and sensors without scatter sheild. The 5000W, 10K-W, 15K-W, 16K-W, 30K-W sensors and scatter shields are supplied with protective corver. All protective covers can also be ordered separately.
